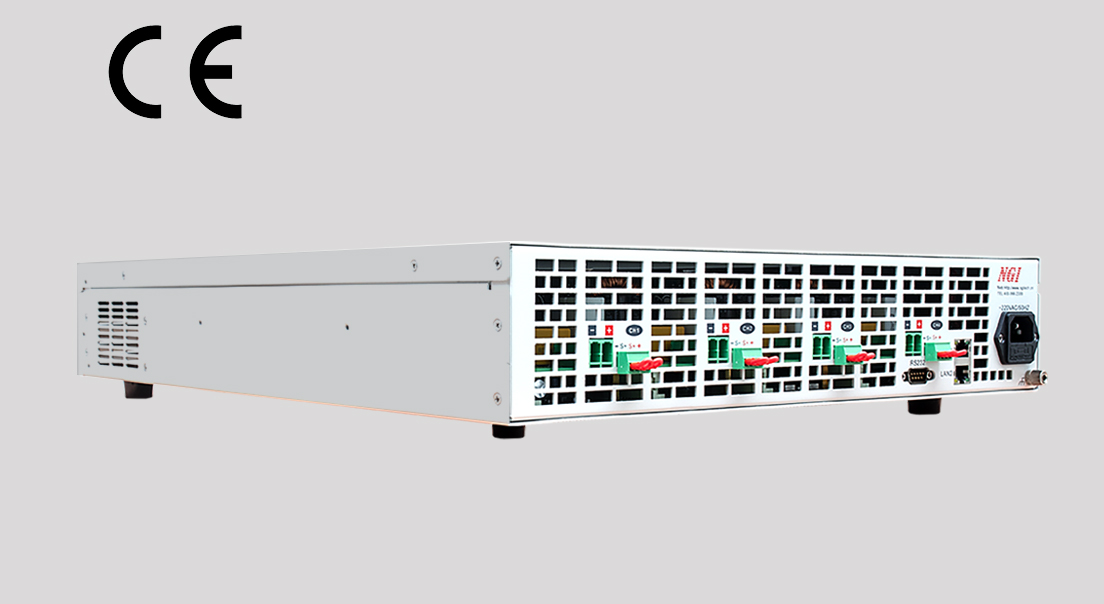

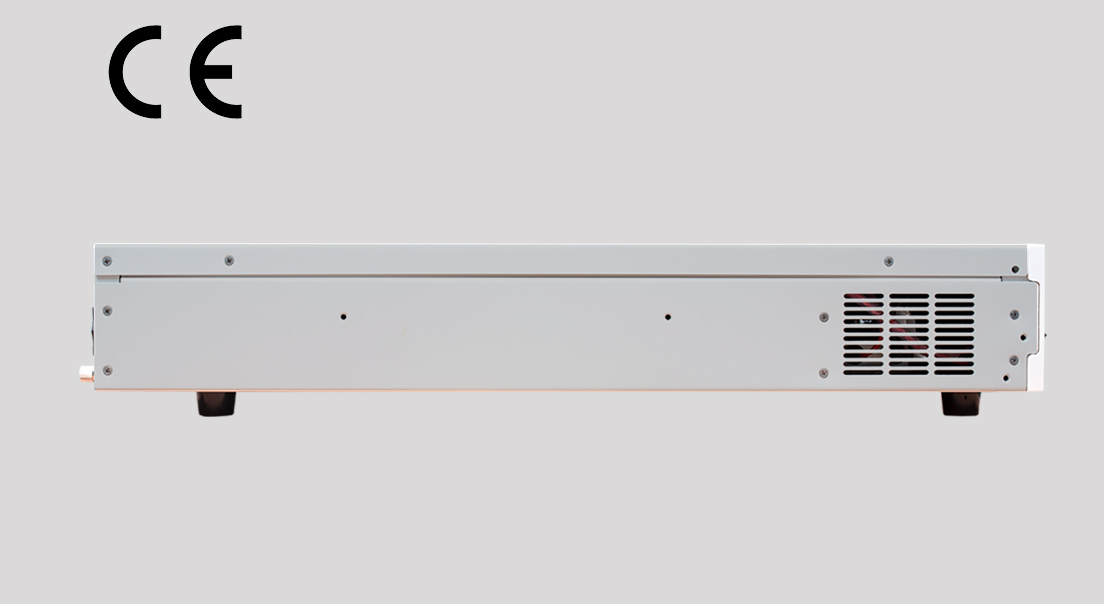

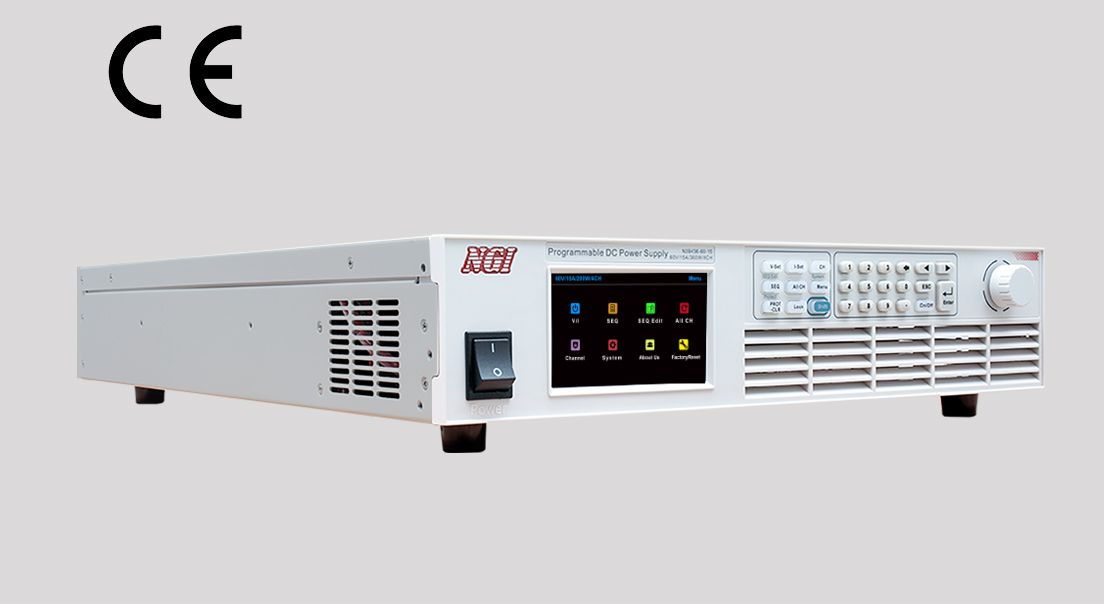

N39400 Series High-accuracy Multi-channel Programmable DC Power Supply

N39400 series is a high-accuracy & multi-channel programmable DC power supply with standard 19-inch 2U design, available for rack installation. N39400 standalone supports Max. 4 channels output, with channels isolated. Both local operation on front panel and remote control on a computer are supported. N39400 can be widely used in lab test, system integration test, production aging line, etc.

Search by model
Showing 0 results
ModelChannel NumberVoltageCurrent PowerAccuracyResolution Communication InterfaceSize
N39420-60-10460V10A200WVoltage≤0.05%+0.1%F.S./Current≤0.1%+0.1%F.S.1mV/1mALAN/RS2322U
N39436-60-15460V15A360WVoltage≤0.05%+0.1%F.S./Current≤0.1%+0.1%F.S.1mV/1mALAN/RS2322U
N39420-150-044150V4A200WVoltage≤0.05%+0.1%F.S./Current≤0.1%+0.1%F.S.10mV/1mALAN/RS2322U
N39436-150-064150V6A360WVoltage≤0.05%+0.1%F.S./Current≤0.1%+0.1%F.S.10mV/1mALAN/RS2322U
N39460-60-15460V15A600WVoltage≤0.05%+0.1%F.S./Current≤0.1%+0.1%F.S.1mV/1mALAN/RS2322U
N39460-150-064150V6A600WVoltage≤0.05%+0.1%F.S./Current≤0.1%+0.1%F.S.10mV/1mALAN/RS2322U
Features

■  Voltage range: 60V/150V

■  Current range: 4A/6A/10A/15A
■  Power range: 200W/360W/600W
■  CC&CV priority function
■  Single device with up to 4 channels, each channel isolated
■  Multiple protections: OVP, OCP, OTP and short circuit
■  LAN port and RS232 interface
■  Equipped with LCD screen and user-friendly interface
■  Dual LAN ports design


Functions & Advantages
Ultra-high integration, single device with up to 4 channels

N39400 series adopts the standard 19-inch 2U design, with Max.4 channels in a single device. Each channel is isolated.One device can support 4-station test simultaneously, which greatly reduces the test equipment quantity and improves test efficiency.


Remote control

N39400 series supports remote control, providing RS232 and LAN port to communicate with the computer, and realizing all functions on the panel via computer application software.


Remote sense

NN39400 series provides remote sense function, which can transfer the actual voltage of the load back to N39400 so that N39400 can compensate for the output voltage and eliminate lead wire errors.


UI flat icons

UI flat icons offer convenient and quick operation.




CC&CV priority function

N39400 has the function of selecting priority of voltage-control loop or current-control loop, which enables N39400 to adopt the optimal test mode for different DUTs, and thus protect the DUT.


As shown in figure one, when the DUT requires reducing voltage overshoot during test, such as supplying power to a low-voltage processor or FPGA core, voltage priority mode should be selected to obtain fast and smooth rise voltage.

As shown in figure two, when the DUT requires reducing current overshoot during test, or when the DUT is with low impedance, such as battery charging scenario, current priority mode should be selected to obtain fast and smooth rise current.




Dual LAN ports for multiple devices control

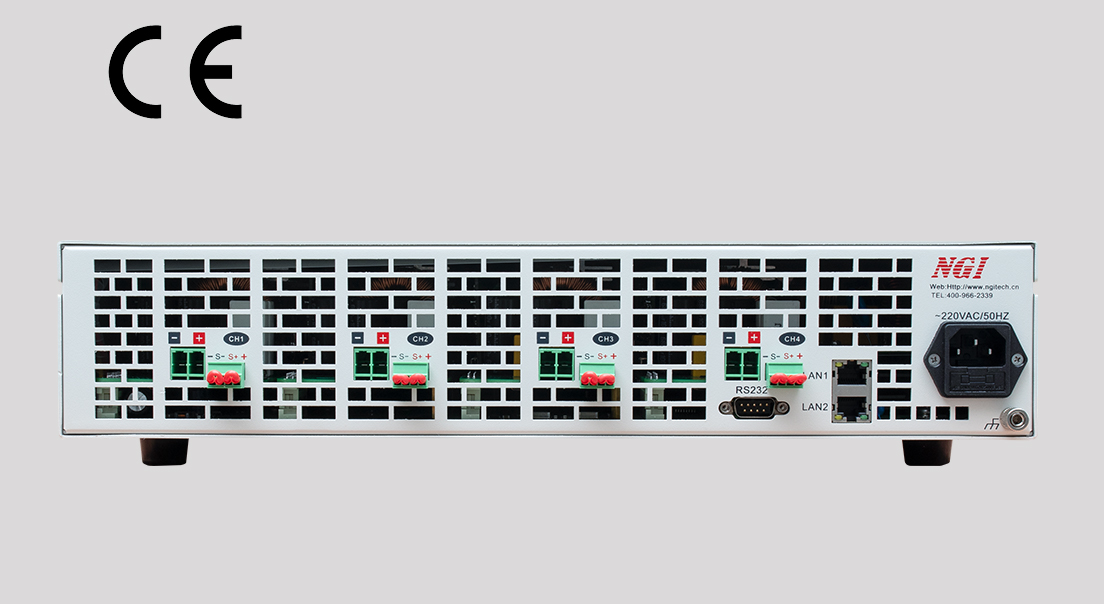

N39400 is equipped with two LAN ports, which can support multiple devices control for quick adjustment and test.


Application Fields

    ■ Laboratory test

    ■ System integration test

    ■ Production line aging


Dimension
Standard & Optional Accessories
Database

Data Sheet

User Manual

Communication Protocol

Software & Driver

Application
