N36100 Series Wide Range Programmable DC Power Supply

N36100 series is a DC power supply with ultra compact size, high performance and high power density. The 1U height and half 19-inch width design brings comfortable experience with space-saving in both standalone and integrated cabinet. Maximum output power of N36100 is 900W. In view of test characteristics of different fields such as laboratory test, system integration test and large-scale production line test, N36100 series adopts wide range designs to meet the needs of different application scenarios.

Features

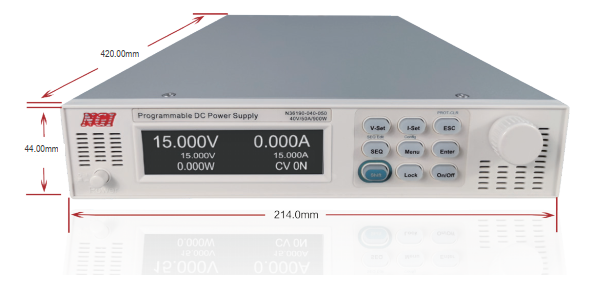

 1U height + half 19-inch width, wide range and high power density

■ Maximum output power: 900W

■ Remote sense

■ Multiple protections: OVP, OCP, OPP, OTP and short circuit

■ CC&CV priority function

■ External analog programming control

■ Supporting battery charging test and internal resistance simulation function

■ Modular design, convenient for multi channels combination

■ Multiple communication interfaces: LAN/CAN/RS232/RS485

■ Auto run function after startup, editable run delay time

■ SEQ test function

Functions & Advantages

Ultra-compact size, high performance

N36100 series is only 1U and half 19 inch. However, its maximum output power is up to 900W. It has multiple test functions, multiple protection and wide range, which enables N36100 to be used in different applications.


CC&CV priority function

N36100 has the function of selecting priority of voltage-control loop or current-control loop, which enables N36100 to adopt the optimal test mode for different DUTs, and thus protect the DUT.

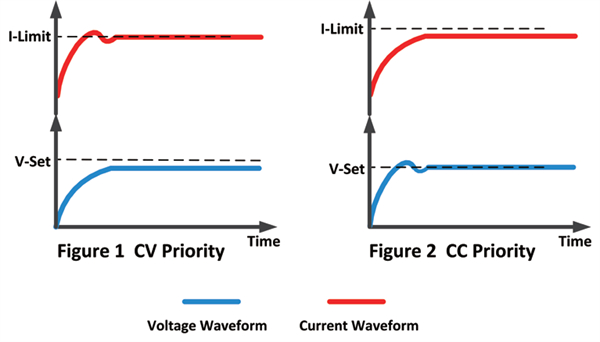

As shown in figure one, when the DUT requires reducing voltage overshoot during test, such as supplying power to a low-voltage processor or FPGA core, voltage priority mode should be selected to obtain fast and smooth rise voltage.

As shown in figure two, when the DUT requires reducing current overshoot during test, or when the DUT is with low impedance, such as battery charging scenario, current priority mode should be selected to obtain fast and smooth rise current.



OLED screen

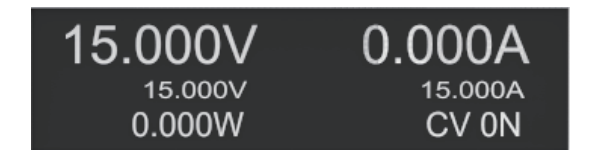

OLED screen has the advantages of compact size, low power consumption, high brightness and high luminous efficiency.



SEQ test function

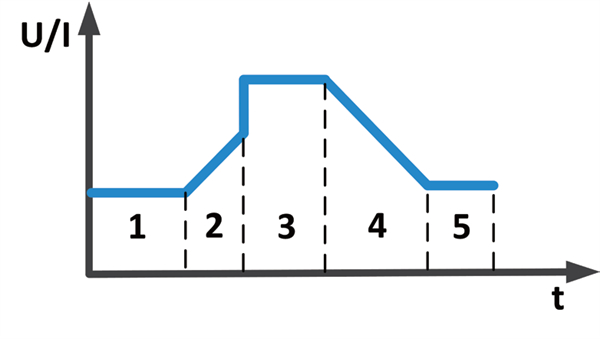

N36100’s SEQ function supports up to 100 steps. It allows settings of output voltage, output current, voltage slew rate, current slew rate and dwell time for single step.


Internal resistance simulation

N36100 series allows settings of voltage and internal resistance value. According to the corresponding output current, the output voltage is decreased with the set

resistance. In this case, the internal resistance of secondary battery, fuel cell and supercapacitor can be simply simulated.

Application Fields

■ R&D laboratory

■ Small DC motor
■ Automotive and avionics

■ Industrial DC/DC converter

■ ATE test system

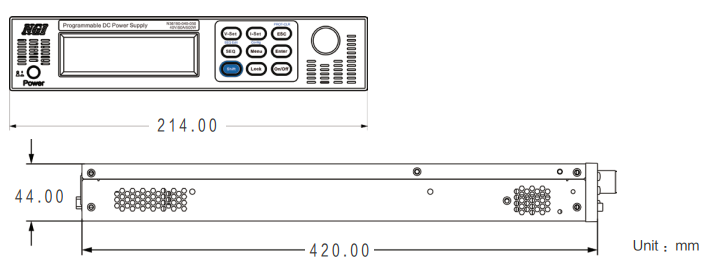

Dimension
